AC AMMETER CURRENT TRANSFORMER
BCT SERIES: CLASS 1(ACCURACY ±1%)
We introduce a new miniature size current transformer with accuracy ±5%.

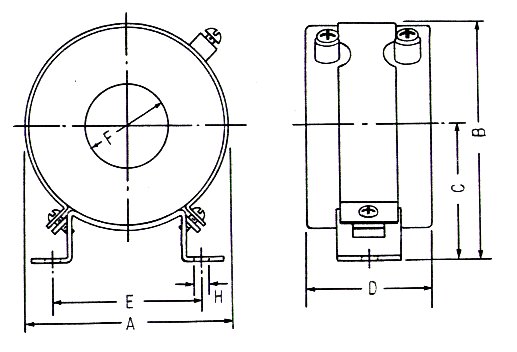

TYPE |
A |
B |
C |
D |
E |
F |
H |
|
Miniature |
64 | 76 | 43 | 31 | 64 | 31 | 7 |
|
BCT-30 |
75 |
92 |
53 |
53 |
75 |
26 |
8 |
BCT-40 |
78 |
92 |
53 |
53 |
75 |
36 |
8 |
BCT-60 |
100 |
115 |
65 |
55 |
77 |
59 |
8 |
BCT-90 |
135 |
147 |
80 |
40 |
80 |
90 |
8 |
BCT-110 |
160 |
178 |
98 |
41 |
78 |
110 |
8 |
TYPE |
REFERENCE CURRENT RATIO |
VA BURDEN |
CLASS |
BCT-40 |
30/5A TO 150/5A |
1.5VA | 1 |
| 200/5A TO 300/5A | 2.5VA | 1 | |
BCT-60 |
400/5A TO 600/5A |
10VA | 1 |
BCT-90 |
800/5A TO 1200/5A |
15VA | 1 |
BCT-110 |
800/5A TO 3000/5A |
15VA | 1 |
MORE SQUARE TYPE
