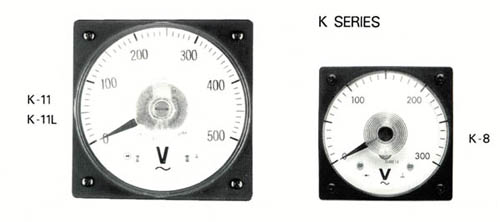

4 3/8 INCH 3 3/16 INCH
| AVAILABLE INSTRUMENTS with CE MARK | ||||
Classification |
Operating Principle |
Full Scale Value or Rating |
||
| DC moving coil | AMMETERS |
Moving Coil Type |
0-1 mA up to 0-30A |
|
VOLTMETERS |
0-50mV up to 0-1000V |
|||
| AC Rectifier type | AMMETERS |
Rectifier Type |
0-1 mA up to 0-5A |
|
VOLTMETERS |
0-3V up to 0-1000V |
|||
FREQUENCY METERS |
Frequency Sensing Transducer Type |
Voltage: 110V, 220V, 380V, 440V |
||
Range: 45-55Hz, 55-65Hz, 45-65Hz |
||||
WATT METERS |
Power Sensing Transducer Type |
Circuit: 1Ø2W, 3Ø3W, 3Ø4W |
K-11L ONLY |
|
Voltage: 110, 220, 380, 440V,... |
||||
Current: 1A, 2.5A, 5A |
||||
| Scale: Lead 0.5~1~0.5 Lag | ||||
POWER FACTOR METERS |
Phase Angle Sensing Transducer Type |
Circuit: 1Ø2W, 3Ø3W, 3Ø4W Balanced |
||
Voltage: 110, 220, 380, 440V,.. |
||||
Current: 1A, 2.5A, 5A |
||||
Scale: Lead 0.5~1.0~Lag 0.5 |
||||

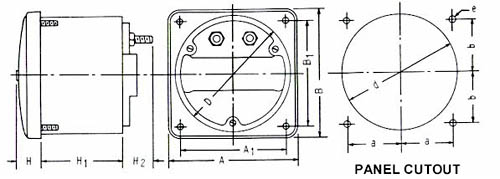

DIMENSIONS (Unit : mm) |
|||
Model |
K-11 |
K-11L |
K-8 |
A |
110 |
110 |
80 |
B |
110 |
110 |
80 |
H |
19 |
19 |
16 |
A1 |
90 |
90 |
65 |
B1 |
90 |
90 |
65 |
H1 |
72 |
130 |
78 |
H2 |
20 |
20 |
10 |
D |
101 |
101 |
65 |
a |
45 |
45 |
32.5 |
b |
45 |
45 |
32.5 |
d |
101.5 |
101.5 |
65.5 |
e |
5.5 |
5.5 |
3.5 |
¡@
