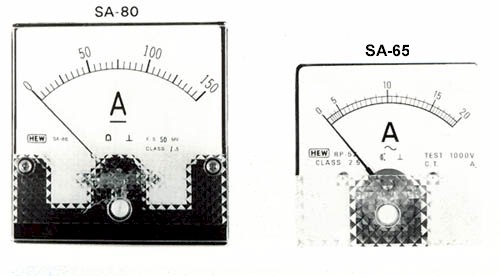

SA-80 (AC/DC) & SA-65(AC ONLY)
AVAILABLE INSTRUMENTS |
|||
CLASSIFICATION |
OPERATING PRINCIPLE |
FULL SCALE VALUE |
|
DC |
AMMETERS |
MOVING COIL TYPE |
50ľA up to 30A |
VOLTMETERS |
50mV up to 1000V |
||
AC |
AMMETERS |
MOVING IRON TYPE |
1A up to 30A |
VOLTMETERS |
50V up to 600V |
||
AMMETERS |
RECTIFIER TYPE |
1mA up to 10mA |
|
VOLTMETERS |
3V up to 1000V |
||

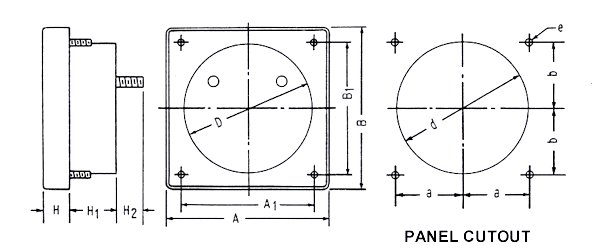

DIMENSIONS ( Unit : mm) |
||
Model |
SA-80 |
SA-65 |
A |
80 |
66 |
B |
80 |
66 |
H |
14 |
14 |
A1 |
65 |
51 |
B1 |
65 |
51 |
H1 |
23 |
21 |
H2 |
13 |
12 |
D |
63 |
52 |
a |
32.5 |
25.5 |
b |
32.5 |
25.5 |
d |
63.5 |
52.5 |
e |
3.5 |
3.5 |
