SO SERIES with CE MARK
AVAILABLE INSTRUMENTS |
||||
CLASSIFICATION |
OPERATING PRINCIPLE |
FULL SCALE VALUE |
||
SO-65 |
SO-52 |
|||
| AC | AMMETERS |
MOVING IRON TYPE |
0-1A up to 0-30A |
0-1A up to 0-30A |
VOLTMETERS |
0-50V up to 0-600V |
0-50V up to 0-300V |
||
| DC | AMMETERS |
MOVING COIL TYPE |
0-50µA up to 0-10A |
-NA- |
VOLTMETERS |
0-50mV up to 0-1000V |
-NA- |
||

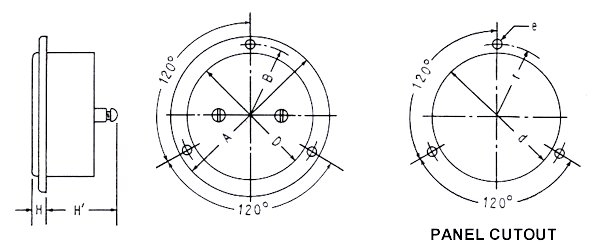

DIMENSIONS (UNIT: mm) |
||
Model |
SO-65 |
SO-52 |
A |
85 |
66 |
B |
38 |
29 |
H |
7 |
6 |
H' |
38 |
38 |
D |
65 |
52 |
d |
65.5 |
52.5 |
r |
38 |
29 |
e |
4.5 |
4.5 |
