DC AMMETER SHORT SHUNT* (3/3)

Application: Use with a DC Ammeter with  60mV

To extend the DC current measuring range from 400A to 600A.

* Not used for continuous current loading

Accuracy: 1.0% of rated value.

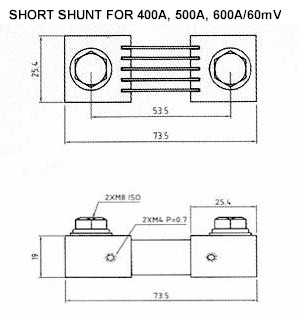

Present short shunt -- for 400A/60mV, 500A/60mV, 600A/60mV

|  STANDARD  |   50A-150A/50mV   |   200A-500A/50mV | 400A-600A/60mV   |
